Hassle-Free Intelligent Bilirubin Meter

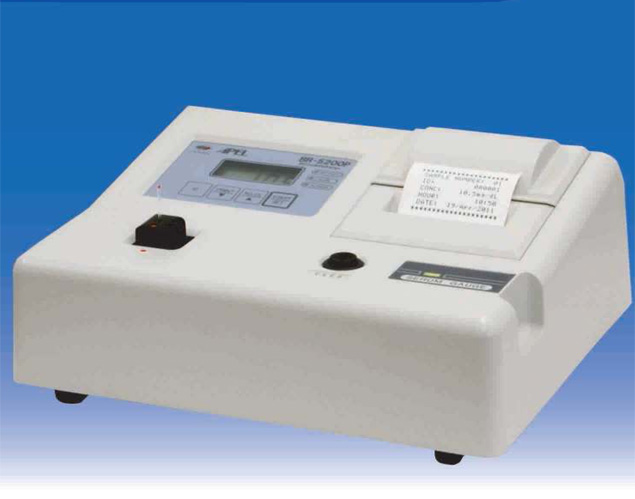

BR-5200P APEL Total Bilirubin Meter - Made in Japan
State-of-the-Art Dual Wavelength Total Bilirubin Meter for Neonates
Highly User-Friendly

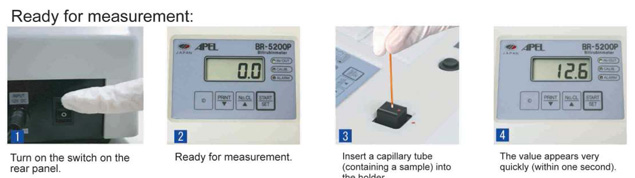

Switch on and start measuring after 60 sec. warm-up
Very quick measurement
Max. one second measurement time.
No lamp replacement
BR-5200P does not need a lamp replacement thanks to the LED light source.
Compact & Light weight
BR-5200P’s foot print is small and weighs only 1.7 kg.
Built-in Printer
Compact thermal printer is built-in
Computer connection
BR-5200P has a USB interface for connection with computers
Specifications
| Method | Dual wavelength |
| Measurement range | 0-30mg/dl (Total bilirubin) |
| Measuring accuracy | ±5% |
| Sample Volume | 50-60 µL |
| Display | Large LCD display |
| Sample container | Hematocrit capillary tube |
| Light source | White high bright LED |
| Detector | Silicon photocell |
| Printer | Thermal serial dot method |
| Interface | USB |
| Power | AC adapter (100-240VAC 50/60Hz) |
| Dimensions | 262(W) X 214(D) X 109(H) mm |
| Weight | 1.7kg (main body) |
Standard Accessories
| Description | Quantity |
| Capillary tube (Heparinized, Red) | 1 vial (100pcs) |
| Capillary tube (Plain, Blue) | 1 vial (100pcs) |
| Clay sealer (Wax Plate) | 1 pc |
| Standard solution (ABY) | 2 bottles |
| USB cable | 1 pc |
| USB driver software (CD-ROM) | 1 pc |
| AC/DC Power code | 1 pc |
| Operation Manual | 1 copy |
